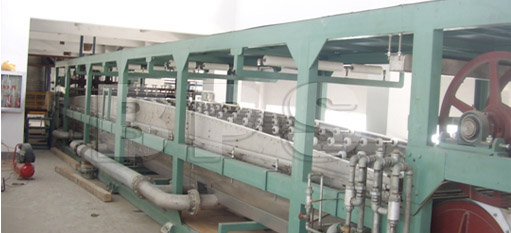

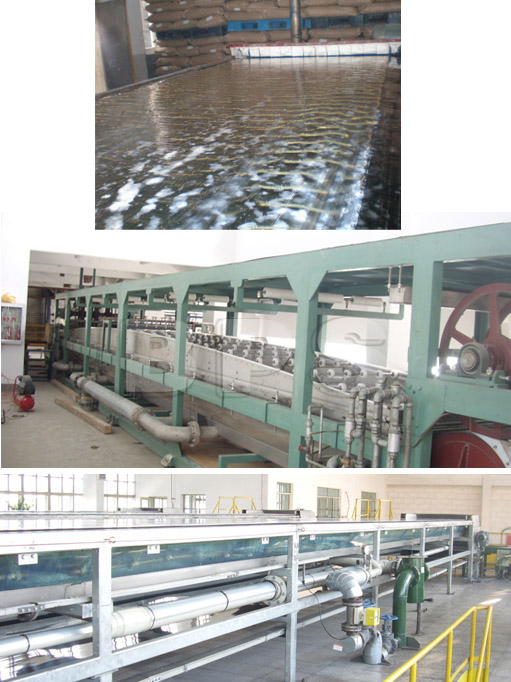

Description Liquid resin is supplied to the double belt cooler by means of a heatable pump(by client) via a filter(by client) station.
The liquid product fed by a feeding device onto the advanced lower belt forms a thin layer which enters after a short distance into the gap between the upper and lower belt.
The good contact-cooling with two-side heat abstraction effects a good cooling capacity.
Both steel belts are drizzled and consequently cooled via nozzles which enable a regular wetting. The water on the upper belt is gathered between retaining strips and sucked off by pumps. The water from the lower belt is gathered in pans from where it flows by gravity to the sewer or a pit / tank.
The solid product sheets are broken up by a breaker into irregular flakes.
SpecificationProduct: Resin
Product form: Flaker
Solidification capacity: max 20t/h
Utilities:
| Electrical Capacity: |
approx. kW |
| Voltage: |
V |
| Portection: |
21, ExdIIBT3 |
| Enclosure: |
IP55 |
| Cooling Water Temperature: |
approx. °C |
| Chilled Water Temperature: |
approx. °C |
| Cooling Water Pressure: |
approx. bar |
Double Belt Cooler with the following dimensions:
With the following technical data:
| Belt width of upper/lower belt: |
mm |
| Cooling Length(lower belt): |
m |
| Cooling Length(upper belt): |
m |
cooling conveyor consisting of:
× One (1) Stainless Steel Belt, with two true-tracking V-ropes, welded endless at site.
× One (1) Tension Terminal Assembly, with a closed pulley, stainless surface and profile is painted with rust preventing coating, inclusive two bearings and a frame construction, with a spindle tensioning assembly and a safety scraper device.
× One (1) Intermediate Cooling Section consisting of spray tank assemblies with:
× Pipe header assembly of polypropylene material complete with polyamide spray nozzles for full belt coverage.
× Water collecting pan of stainless steel construction with steep angle design.
× Intermediate structure of rolled shape (mild steel) with belt support: upper strand on sliding support, lower strand on rollers.
× Clear PVC side curtains for access and inspection, preventing water from splashing.
× Squeegee tank assembly (mounted to the last spray tank assembly) for wiping water from the underside of the belt, consisting of:
stainless steel enclosure
adjustable pressure squeegee holder frame
rubber squeegee blades
One First Breaker One Second Breaker
Control System / One Control Cabinet (for installation in non-hazardous area) /
 |
