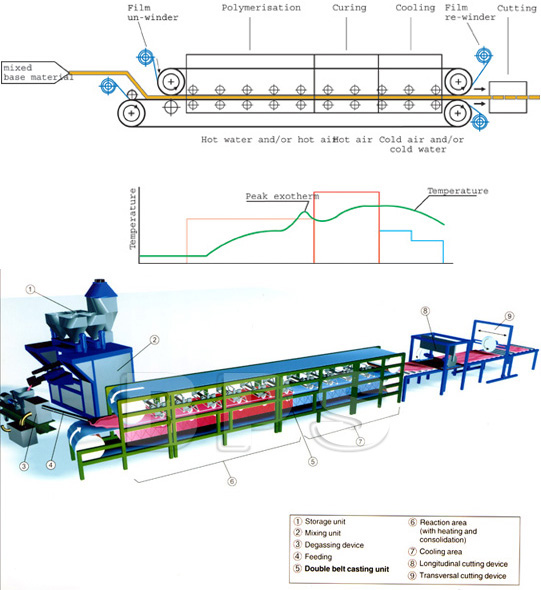

We produce a range of solutiongs-baded on both single and double belt systems-for the casting of products as diverse
as films, sheets, plates and membtande. areas of specific expertise include double belt presses for continuous
sheet moulding and lamination.
Basic Description
Conveyor Data
Belt Width：1000mm
The range of Belt Speed 0.1~(1.2)~2.0m/min
Conveyor Shaft Centers：33 m
Overall Conveyor Length：Approx.34.12 m
Overall Conveyor Width about：3.1m
Pulley Diameter：950mm

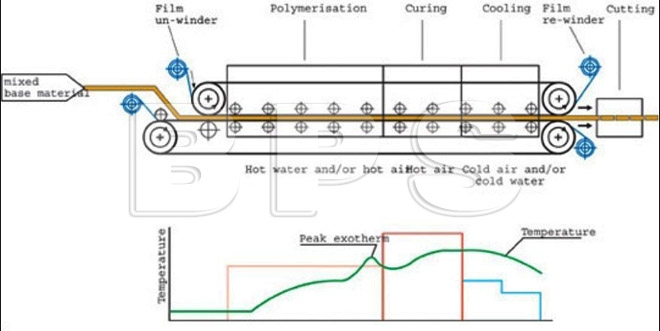

5、zone heating chamber
1st zone(5m) : Controllable (by steam)
2nd zone(5m) : Controllable (   “   )
3rd zone(5m) : Controllable (   “   )
4th zone(5m) : Controllable (   “   )
5th zone(5m) : Controllable (   “   )
Material Data

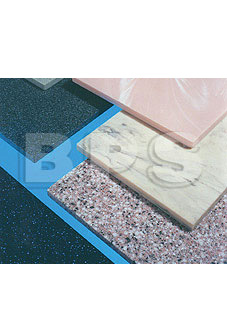

Product : Acrylic type artificial marble
The rang of Product width : 830mm normal finished(Final target 760 mm)
The range of Product Thickness : Normal 6~(13)~19mm(Final target 12.7 mm)
Product feed temperature : Approx.20~30 oC
Please find out more information:
--Steel Belt
--Nip Adjustment System ;
--Feed/Tension Terminal Assembly
--Intermediate section
--Drive Terminal Assembly
--Side dam
--Film handling system.
--Un-winding device。
--Roller Conveyor for Cooling No.1
--Roller Conveyor for Cooling No.2
--Control panel (Air purge type)
--The supervision.
